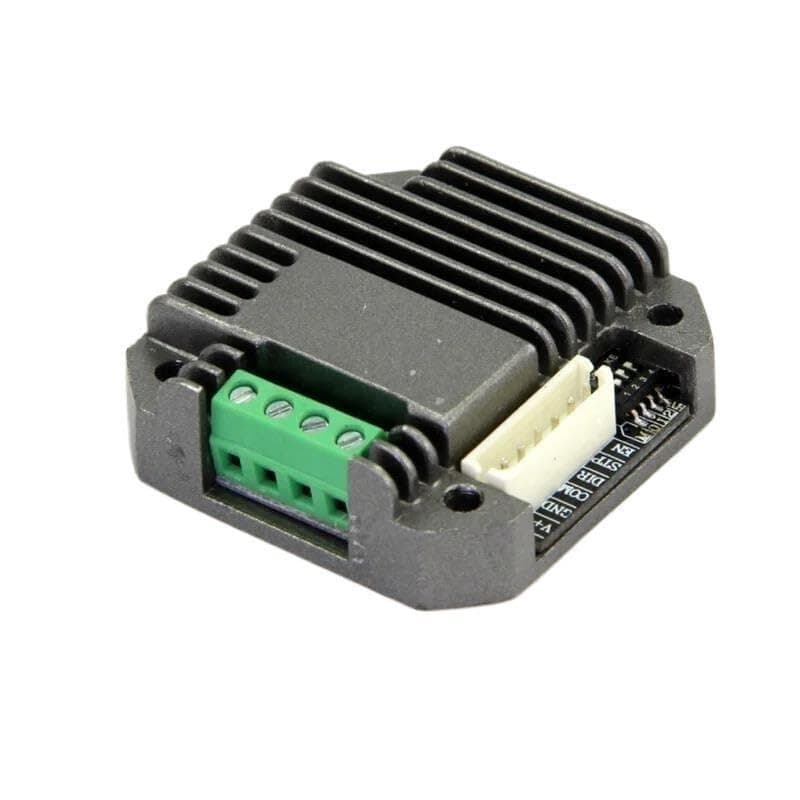

42 Stepper Motor Integrated Micro-Small Stepper Driver Module

Motor Drives ZD-M42P with heat dissipation 42 stepper motor integrated micro-small stepper driver module 485/CAN communication Model: ZD-M42P sort by color: ZD-M42P: Pulse drive (without motor) ZD-M42P-CAN: CAN type driver (excluding motor) ZD-M42P-485: 485 type drive (without motor) Features: Miniature design, easy installation, can be integrated with 42 stepper motor Heat dissipation cast aluminum closed shell Automatic half-flow when it stops running, no phase-lock noise High-speed isolation of parallel interface, compatible with 3.3-5V and 12-24V logic levels Current 0-2A adjustable 1/2/4/8/16/32 subdivision optional drive interface Power supply: DC11V-DC28V/2A, recommended DC24V Indexer interface COM: Common anode. 3.3V-5V[HV DIP switch ON] Or 12V-24V [DIP switch OFF] Note: When the HV DIP switch is OFF, it supports common cathode connection DIR: 0V or Vcom. Current: [email protected]/8mA@12V/15mA@5V/18mA@24V STP: 0V or Vcom. Current: [email protected]/8mA@12V/15mA@5V/18mA@24V Frequency 100-20KHz EN: 0V or Vcomo Current: [email protected]/8mA@12V/15mA@5V/18mA@24V Vcom or floating, EN enables stepper motor; OV stepper motor is offline Output motor current: peak value 2A (single-phase maximum), 0-2A adjustable in actual use Drive mode: PWM chopper constant current Drive subdivision: DIP switch setting selection 1, 2, 4, 8, 16, 32 Insulation resistance: >100MQ under normal temperature and pressure Dielectric strength: 0.5KV under normal temperature and pressure, 1 minute Protection: input reverse connection, overload, drive overheat, drive overcurrent Operating temperature: -20°C-85°C High-concerned chemical : none Material : Aluminum alloy Type : Other
